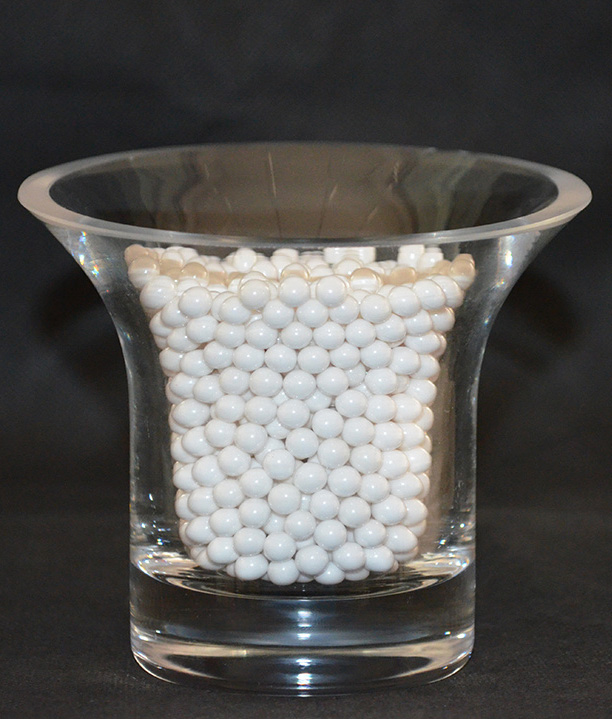

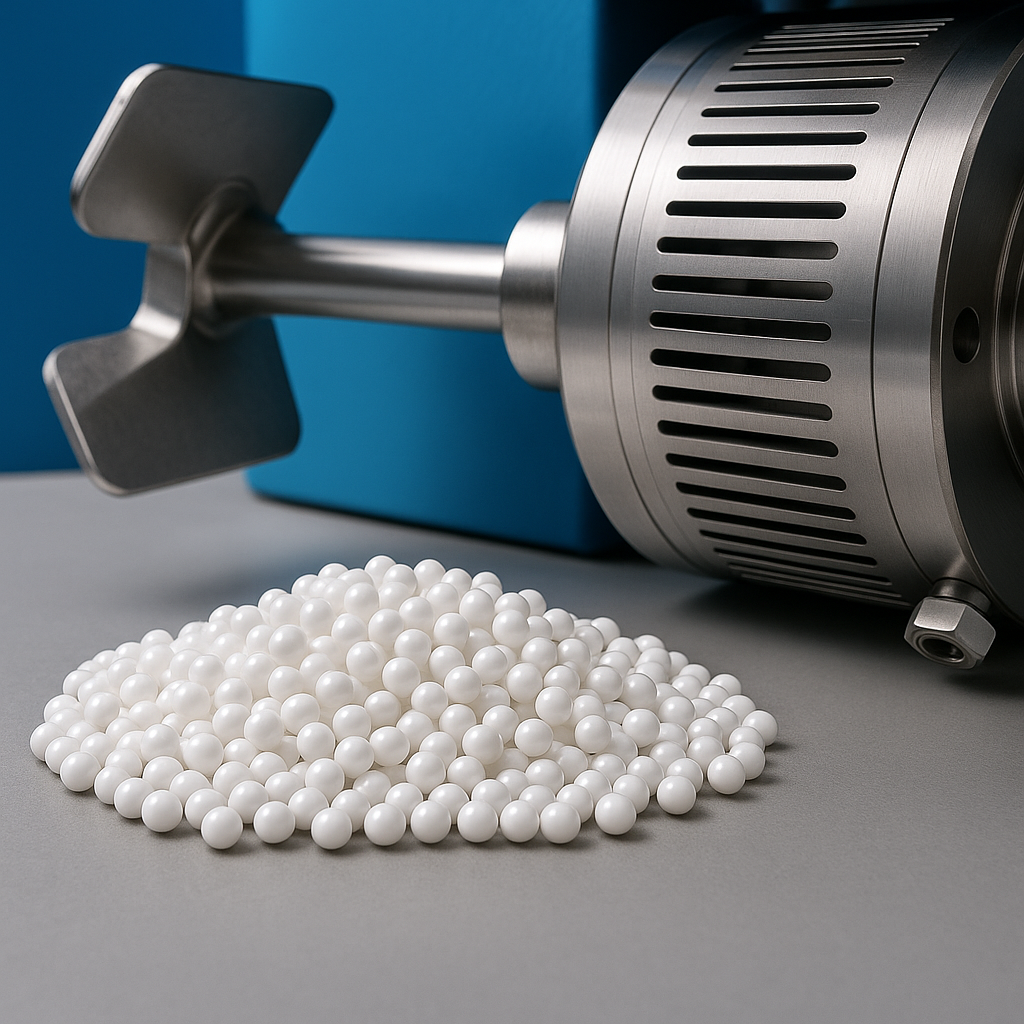

Zirconia beads are high-performance ceramic grinding media manufactured from high-purity zirconium oxide (ZrO₂). Renowned for their ultra-high hardness (Mohs hardness ≥8.5), exceptional wear resistance, and chemical inertness, these beads undergo specialized processes such as yttria stabilization (Y₂O₃-ZrO₂) to achieve stable tetragonal or cubic crystal structures. This ensures physical stability even under extreme conditions (e.g., high temperatures, strong acid/alkali environments), delivering a service life 3-5 times longer than conventional alumina beads.
Key Features:
Excellent chemical resistance
| Product Specification |
|---|
| Chemical Composition |
| ZrO₂ | Y₂O₃ | Other |
|---|---|---|
| ≥95% | ≥4.5% | ≤0.5% |
Note: Different product specifications have different chemical compositions.
| Physical charactenslics |
|---|
| Densily | Bulk Density | Crushing Strength | Vickers Hardness | Wear Rate |
|---|---|---|---|---|
| >6.0g/cm³ | ≥3.7g/cm³ | >2.0KN(Ф2mm) | >1100Hv | <0.5(ppm/h ) |
| Specifications(mm) |
|---|
| Ф0.1-0.2 | Ф0.2-0.3 | Ф0.3-0.4 | Ф0.4-0.6 | Ф0.6-0.8 |
| Ф0.8-1.0 | Ф1.0-1.2 | Ф1.2-1.4 | 1.4-1.6 | Ф1.6-1.8 |
| Ф1.8-2.0 | Ф2.0-2.2 | Ф2.2-2.4 | Ф2.4-2.6 | Ф2.6-2.8 |
| Ф2.8-3.0 | Ф4 | Ф5 | Ф6 | Ф7 |
| Ф8 | Ф10 | Ф12 | Ф15 | Ф17 |
| Ф20 | Ф25 | Ф30 | Ф40 | Ф50 |
Note: Specifications can be customized according to customer needs.
Used for milling ceramic powders like alumina, titania, and barium titanate for MLCCs, capacitors, and other electronic components.
Ideal for dispersing and grinding cathode/anode materials such as LiFePO₄, NCM, and graphite in high-viscosity battery pastes.
Applied in the production of digital inkjet inks, automotive coatings, and high-end pigments requiring fine and uniform dispersion.
Used in wet grinding of APIs and excipients to nano or submicron levels for injectable and oral formulations.
Ensures consistent particle size and low contamination during processing of functional pigments and skin-contact materials.
Crucial in dispersing carbon nanotubes, graphene, and quantum dots in advanced material R&D and production.
All products have passed ISO9001:2008 international quality system certification; ISO14001:2004 environmental system certification.
